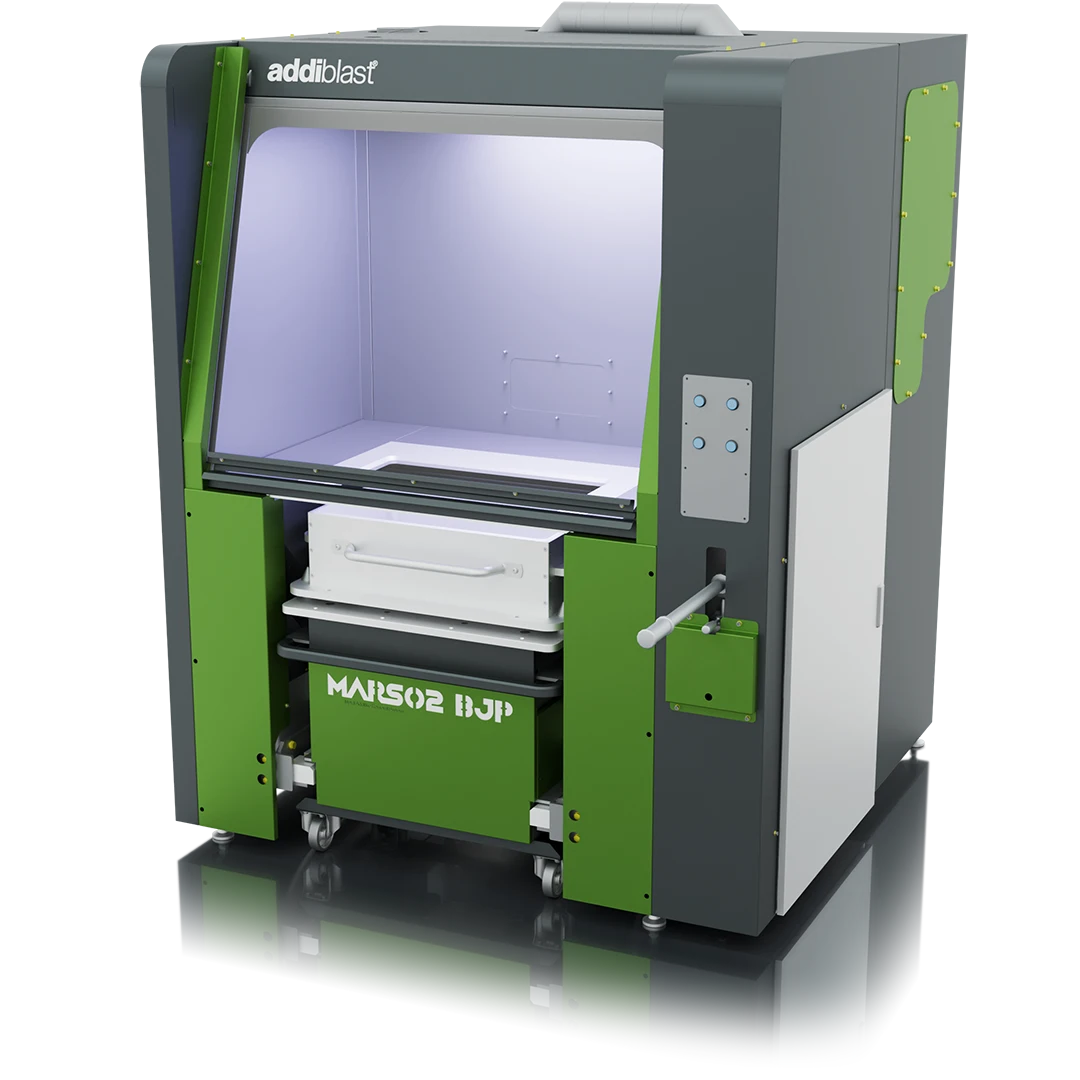

/01 Equipment and features
Basic configuration
01
Big window for process monitoring
02
LED workspace illumination
03
Loading plate, customized to your build box
04
Lifting mechanism in z-direction (max 300 mm)
05
Two limit switches controlled with peddals
06
Shelves inside the cabinet
07
HEPA13 exhaust cartridge
08
Cyclone seperator
09
Powder storage bin (60l)
10
Ventilator GMT200
11
Stainless-steel material, sealed
07
08
09
10
11
/02 Specifications
Technical specifications
Dimensions (L x W x H)
1700mm x 1600mm x 2250 mm
Workspace (L x W x H)
1280 mm x 860 mm x 950 mm
Build plate volume (L x W x H)
700 mm x 450 mm x 250 mm
Compressed air (min - max)
6 bar / 87 PSI - 8 bar / 116 PSI
Air consumption
300 l/min
Power
3 x 230/400V, 3/N/PE 50/60 Hz
Weight
800 kg
