/01 Equipment and features
Basic configuration
01
Enclosed chamber for safe work
02
Air gun for cleaning
03
Window for process monitoring
04
LED workspace illumination
05
Electric motor driven arm with 210° rotation range
06

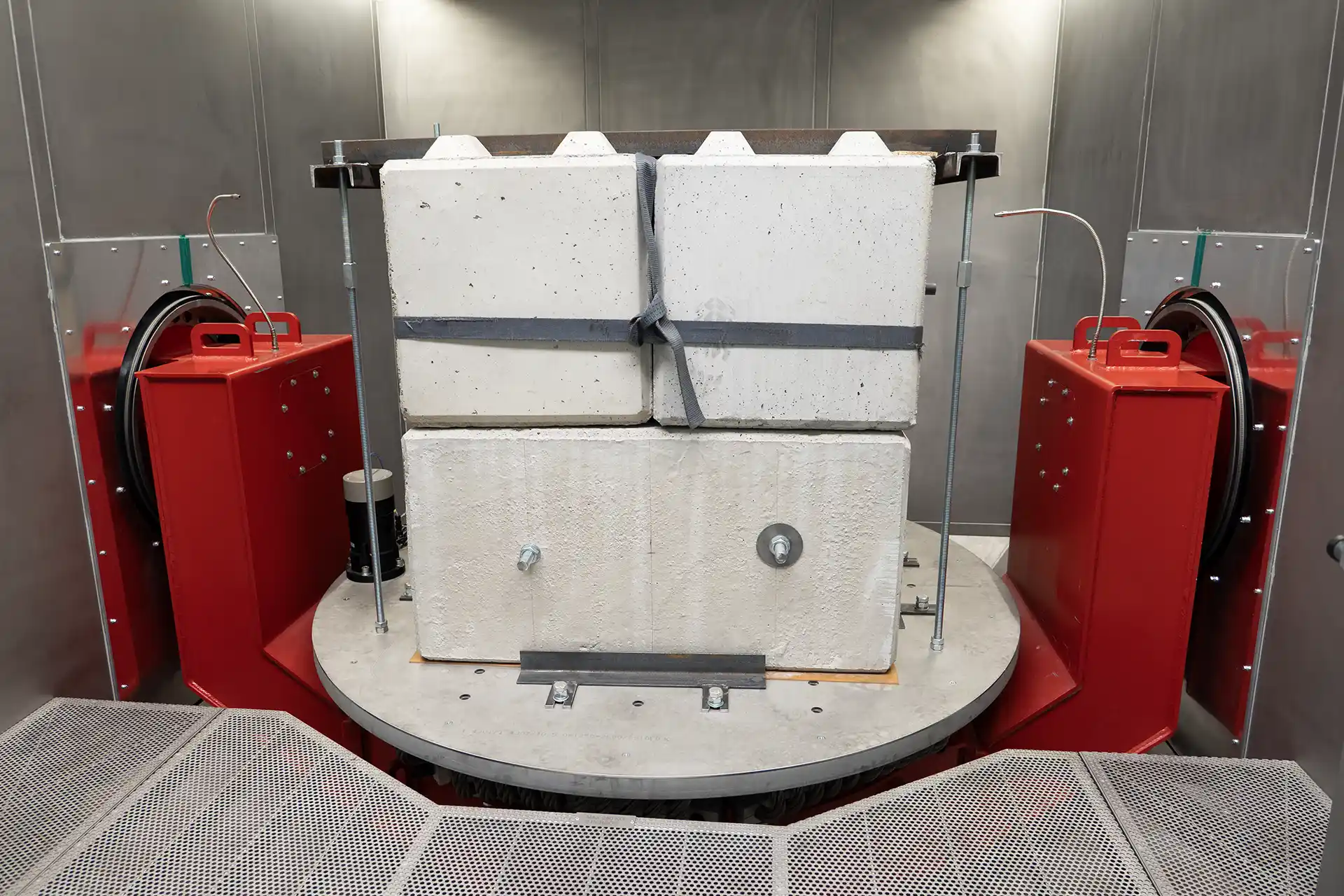

Ø 2050 mm servo-driven rotary table on swivel arm, 0-3 RPM
07
Frequency regulated electro vibrator on rotary table
08
Butterfly valve operated collection hopper
09
12" Colour touch interface
10
Electronic control box for managing all the machine functions
11
Safety fixtures for safe manual and automatic operation
12
HEPA13 exhaust cartidges
13
ATEX certified (Ex protected)
10
11
12
13
/02 Specifications
Technical specifications
Dimensions (L x W x H)
5370 mm x 4807 mm x 4677 mm
Workspace (L x W x H)
2900 mm x 3200 mm x 2450 mm
Build plate volume (L x W x H)
1375 x 1375 x 1700 mm
Load capacity
7.000 kg
Compressed air (min - max)
6 bar / 87 PSI - 8 bar / 116 PSI
Inert gas
Argon, Nitrogen - 8 bar / 116 PSI
Air consumption
1.500 - 2.000 (air/gas) l/min
Power
3 x 230/400V, 3/N/PE 50/60 Hz
Weight
≈ 15.000 kg
Download PDF datasheet
/03 Optional feature
Inert Gas Infusion system
Argon or Nitrogen can be used with exhaust connection for external venting system. We can maintain Oxygen level in range 4-2% during the operation.
/04 Video presentation
/05 Frequently Asked Questions
- What is the maximum part size MARS05 XL can handle?
MARS05 XL supports build volumes up to 1,375 × 1,375 × 1,700 mm and part weights up to 7,000 kg. - Can MARS05 XL handle reactive metal powders safely?
Yes, MARS05 XL is explosion-proof and can be used with an optional inert gas infusion system to ensure safe handling of titanium, aluminum, and other reactive powders. - Is the depowdering process fully automated?
MARS05 XL offers fully automated depowdering with programmable recipes and smart automation features. Manual operation is also available for added flexibility. - Is Orbi software required?
Orbi is optional but recommended. It allows you to create, simulate, and store depowdering recipes for enhanced process control and repeatability. - Can MARS05 XL integrate with powder recycling solutions?
Yes. MARS05 XL connects with the STAR01/02 powder recycling unit, creating a closed-loop workflow for efficient powder recovery and reuse.
